YT8280 aluminium-base coating thickness gauge

YT8280 is a domestic coating thickness gauge made by 3nh Company, which has its own intellectual property right.
More Photos:
Date:2023-07-26  Browse:
  • Introduction
  • Product Software

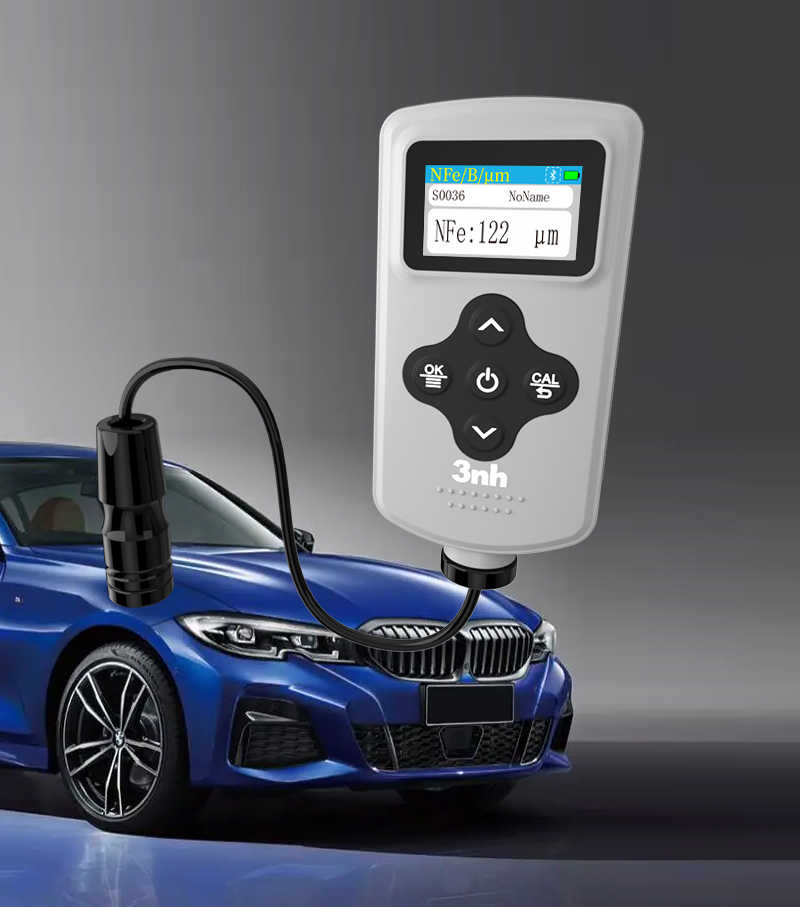

Economical split type aluminium-base coating thickness gauge YT8280



YT8280 is a domestic coating thickness gauge made by 3nh Company, which has its own intellectual property right, it can quickly and accurately detect the thickness of non-magnetic coating on ferromagnetic metal substrate by magnetic method.



YT8280 aluminum-based coating thickness gauge has the advantages of accurate measurement, large measurement range, multiple calibration modes, multiple measurement modes, convenient positioning and powerful functions, widely used in manufacturing, metal processing, chemical industry and other surface engineering testing fields, coating surface treatment industry is the basic equipment.


The Fe probe can detect the thickness of non-magnetic coatings sprayed on magnetic substrates (such as steel), such as the paint coating, powder spraying coating, porcelain coating, chromium coating, copper coating, zinc coating, etc.



Features of YT8280 economic split type aluminium-base  coating thickness gauge

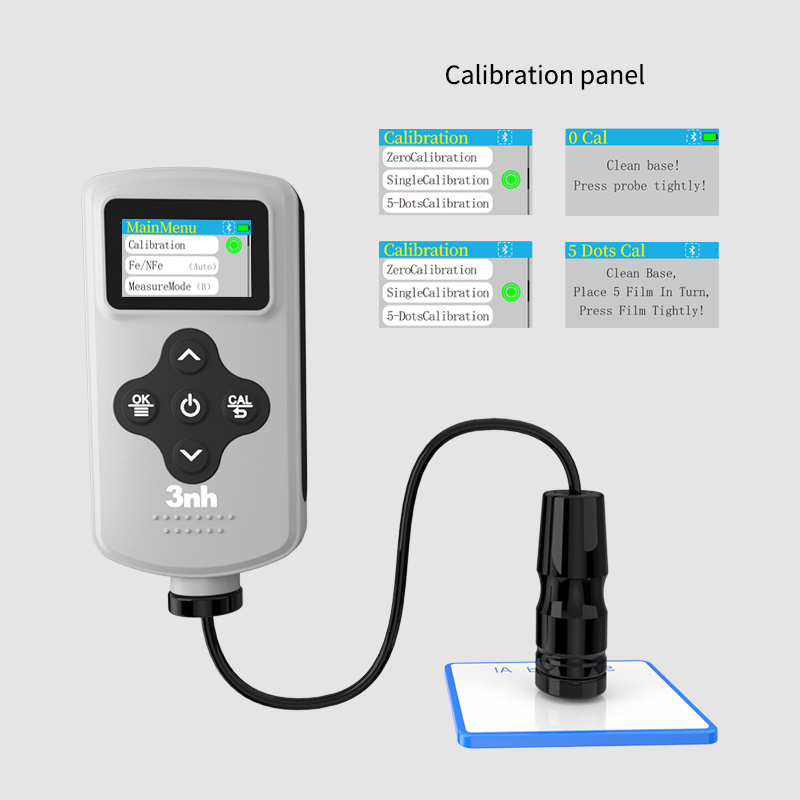

1、Support Zero Point, single point, five points

Support a variety of calibration methods, testing more convenient, to meet the needs of higher test accuracy

Support Zero Point, single point, five points

2、IPS pure color screen, smooth operation, large storage capacity

IPS pure color screen, smooth operation, large storage capacity

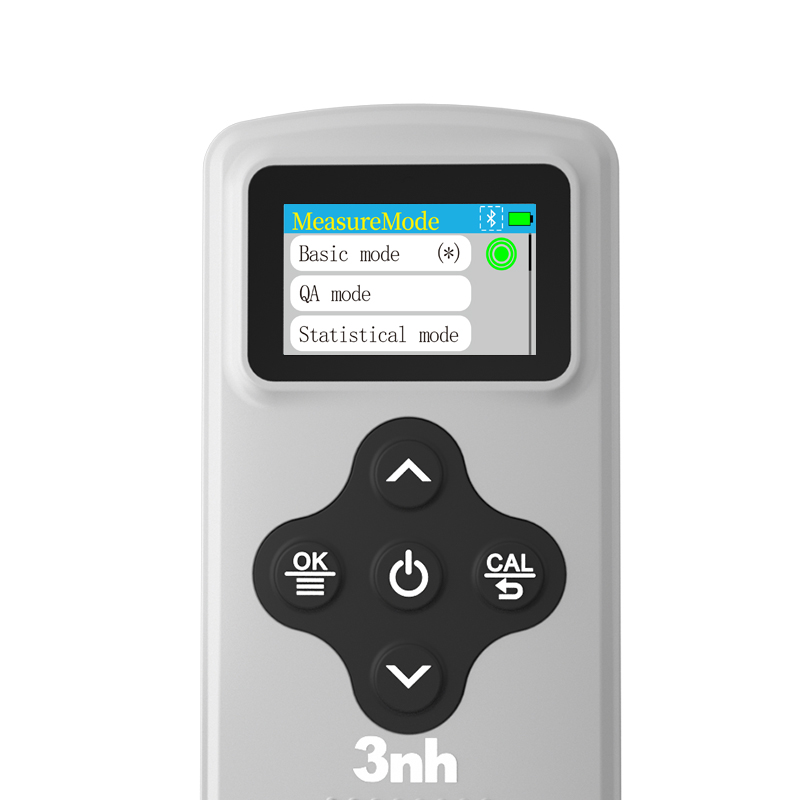

3、Measurement mode rich

Coating thickness tester YT8200 has basic mode, quality control mode, continuous mode, statistical mode for choice, to adapt to more test scenarios

Measurement mode rich

4、The radius of convex plane and concave plane

Precisely measured at 5mm and 10mm respectively

The radius of convex plane and concave plane

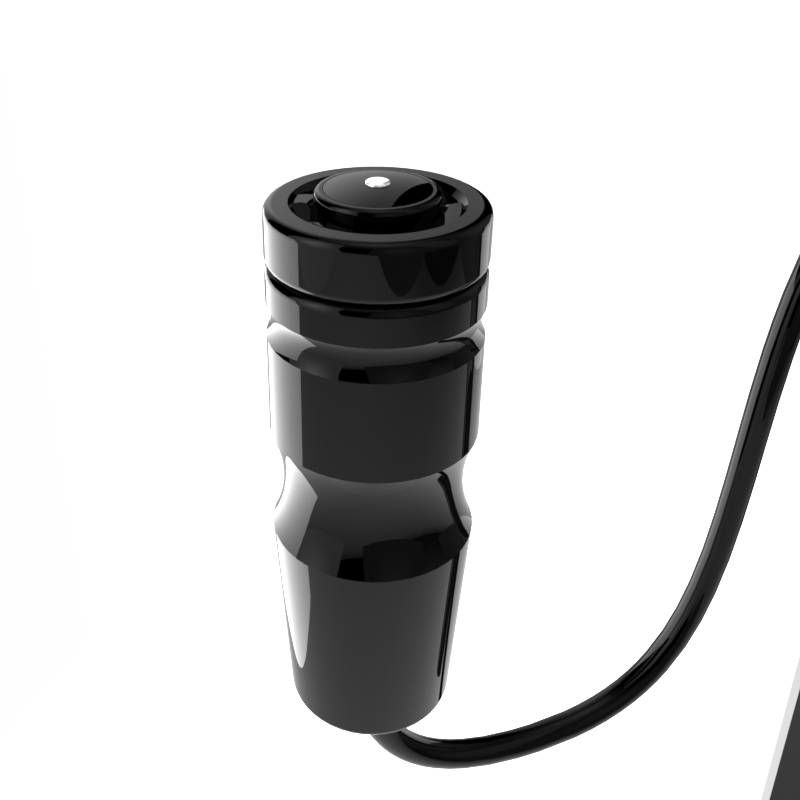

5、High sensitive probe

Independently developed high sensitive probe response speed, testing more accurate

High sensitive probe

6.Support Bluetooth, mobile APP, We chat applet more extended functions

It can transmit measurement data to mobile phone through Bluetooth, edit and process corresponding data, and output test report.

Support Bluetooth, mobile APP, We chat applet more extended functions



Technical parameters of YT8280 economic split type aluminium-base  coating thickness gauge



Model YT8280
Product Name Economical split type aluminium-base  coating thickness gauge YT8280

Characteristic
YT series coating thickness gauge made by 3nh Company, which has its own intellectual property right, it can quickly and accurately detect the thickness of non-magnetic coating on ferromagnetic metal substrate by magnetic method。

It is widely used in surface engineering testing fields such as manufacturing, metal processing, chemical industry, and so on, because of its high precision, large measuring range, multi-calibration mode, multi-measurement mode, convenient positioning and powerful function, is The coating surface treatment profession basic equipment.

The Fe-based probe can detect the thickness of non-magnetic coatings on various magnetic substrates (such as steel) , such as paint, powder, porcelain, chromium, copper, zinc, etc. .
Standard ASTM B499,ASTM D1400,ASTM D709;
ISO 2178,ISO 2360,ISO 2808;
GB/T 4956,JB/T 8393
Matrix N Fe
Probe type split type
Resolution Resolution:1μm
Measurement range 0~2000μm
Measurement accuracy zero calibration:±(3%H+1)μm;
Two point calibration:±(1~3%H+1.5)μm;
note: H is the sample thickness
Display screen IPS Full color screen, 1.14inch
Interface Type C USB;Button
Stored data One thousand
Battery capacity Lithium-ion battery, fully charged, one-time continuous test 10000
Measurement mode Basic Model, quality control model, continuous model, statistical model
Minimum measurement size 10×10mm
Minimum measurement thickness Non-magnetic:0.05mm
Minimum curvature convex radius 5mm; concave radius 10mm
Unit μm/mil
Size 107×50×20mm (Probe headØ18x69)
Weight 80g
Working temperature 0~40ºC(10~90%RH without condensation)
Storage temperature  -10~50ºC
Software Support WeChat applet,HarmonyOS,Windows,Android,IOS
Standard accessories 1 base (Aluminium Matrix), wrist strap,,Wipe cloth, USB cable, Positioning film, calibration film
Optional accessories Printer,5V-2A Power adapter
Note: Calibration film a set of 5(slightly different thickness) , technical parameters only for reference, to the actual sales of products shall prevail
