HG60S Economic Glossmeter 200gu

HG60S Economic Gloss Meter features with 60° angle, to test glossiness with 0~200GU and aperture 9x15 mm.

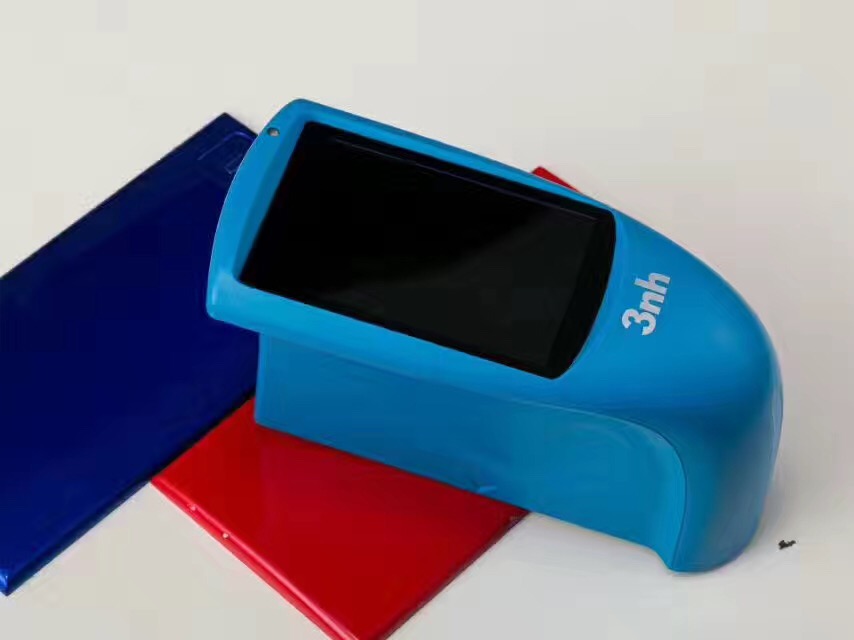

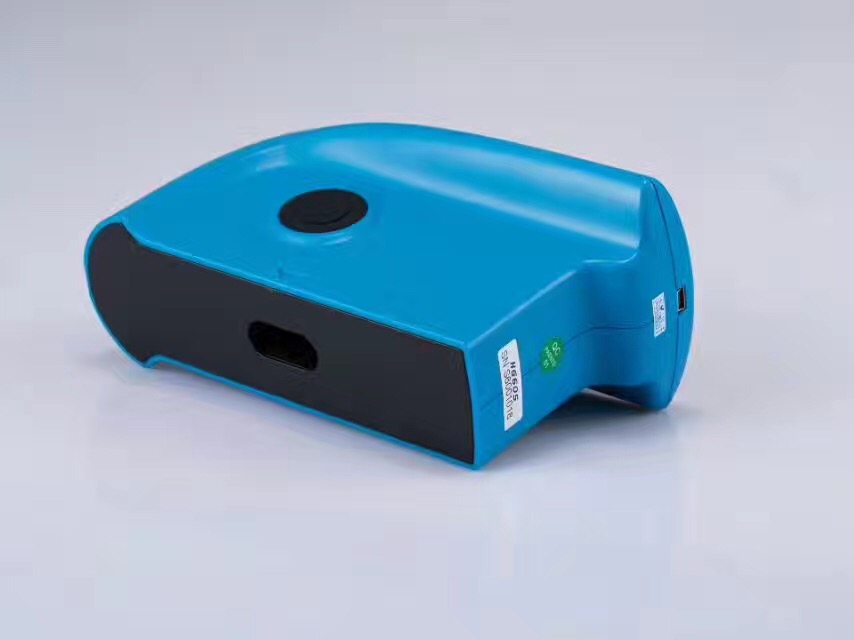

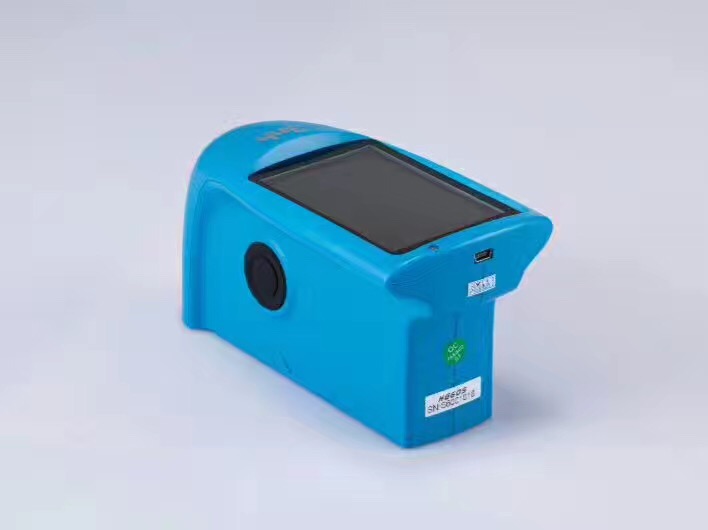

More Photos:
Date:2023-11-14  Browse:
  • Introduction
  • Product Software

HG60S Economic Gloss Meter



HG60S cheap gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. HG60S economic glossmeter conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.



HG60S 200gu gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.



Features:



1.       60° angle for semi gloss

2.       Concise appearance, feel good

3.       Display 5 sets of measurement data, good for comparison

4.       Built-in lithium ion rechargeable battery

5.       Basic model measurement can meet basic glossiness testing requirements

6.       One button for all angles measurement at the same location

7.       Comply with international standards

8.       Stable performance, easy to read data.



Specifications:



HG60S Economic Glossmeter




Model:

HG60S cheap gloss meter



Measuring Angle

60°
Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457



Measuring Area (mm)

9x15



Measuring Range

0~200GU



Division Value

1GU



Measurement Range

Repeatability

Reproducibility

0-200GU          ±1GU           ± 1GU



Measurement Standard

Conform with JJG696 first class glossmeter working requirement



Chromaticity Corresponding

Corresponding with CIE 1931(2°) under CIE C light source



Errors

±1.5 , ± 1.5%



Measuring Time

0.5s



Dimension

L*W*H : 160mm*75mm*90mm



Weight

350g



Language

Chinese/English



Battery

3200mAh Li-ion Battery, >10000 times(within 8 hours)



Display

TFT 3.5 inch



Interface

USB/RS-232



Storage

Basic mode: 1000



Software

/



Operation Temperature

 0~40℃(32~104°F)



Storage Temperature

 -20~50℃(-4~122°F)



Humidity

<85% relative humidity,  no condensation



Standard Accessories

Power Adapter, USB cable, User Manual, Calibration Plate



Optional Accessories

Miniature Printer



Note

The specifications are subject to change without notice.






Warranty:

3nh offer one year product warranty from the purchased date and lifetime maintenance (except consumables),   in the absence of man-made damage and cases of force majeure.

Glossmeter pdf Download:
